OpenZiti Quickstart

This walkthrough uses kziti, a CLI that wraps OpenZiti behind an opinionated model, to stand up a small lab on a single VM and reach a private nginx from a Kasm workspace.

You will:

1. Install kziti and bring up an OpenZiti controller and router.
2. Create a network and a private router that hosts your services.
3. Run an nginx container behind the private router and publish it as a service.
4. Configure Kasm to use OpenZiti as an egress provider.
5. Grant a Kasm-managed identity access to the service.
6. Validate traffic from a Kasm session.

Prerequisites

• A Linux VM (x86_64 or aarch64) with:
  • access to root/sudo
  • an internet accessible IPV4 address
  • a DNS record pointed at the IPV4 address
  • an installation of Docker
• A Kasm deployment whose Manager and Agents can reach the Linux VM on ports:
  • 1280/tcp - controller edge/client and management API.
  • 6262/tcp - controller fabric port (used by routers).
  • 3022/tcp - public edge router listener.
  • 3023/tcp - private router listener.

Step 1. Install kziti

curl -fsSL https://kasmweb-build-artifacts.s3.amazonaws.com/kziti/install.sh | bash
kziti --version

You should see a version printout:

$ kziti --version
kziti 0.1.0.dev28+dc90047
  commit: dc9004792a40
  built:  2026-05-08T17:18:17Z

Step 2. Deploy the OpenZiti controller and public router

Parameters:

• <your-linux-vm-dns>: DNS record from prerequisites
• <create-an-admin-password>: Generate yourself a secure alphanumeric password

kziti deploy install \
  --controller-host <your-linux-vm-dns> \
  --router-host <your-linux-vm-dns> \
  --admin-password '<create-an-admin-password>' \
  --yes

This bootstraps:

• An OpenZiti Controller on the controller hostname.
• A Public Router on the router hostname.
• An admin identity that kziti uses for every subsequent command on this host.

The install runs in a few minutes and lives at /opt/kziti by default. It will conclude with Installation complete.

Step 3. Create a network and a private router

In kziti's model a network groups related services. A private router sits next to the resources the network exposes and is the only thing that hosts services.

Create the network record on the controller:

kziti network create demo "Demo"

Provision a private router record for the network — this writes an enrollment JWT:

kziti router private provision demo demo-router-1 --output-dir /tmp

For a single-host quickstart, run the private router on the same VM in a separate kziti install directory and compose project: Use --router-port 3023 to avoid conflicting with the public router already bound to port 3022:

kziti deploy install \
  --profile router \
  --install-dir /opt/kziti-demo-router \
  --project kziti-demo-router \
  --router-host <your-linux-vm-dns> \
  --router-port 3023 \
  --enrollment-token "$(cat /tmp/demo-router-1.jwt)" \
  --yes

Confirm the new router shows online:

kziti router list

Step 4. Run a private nginx behind the router

Run an nginx container attached to the private router's compose network so the router can reach it by container hostname:

docker run -d \
  --name private-nginx \
  --network kziti-demo-router_ziti \
  nginx:alpine

If your install used a different --project name, run docker network ls and pick the network whose name starts with the project you chose.

Step 5. Publish the nginx service

kziti service create demo private-nginx private-nginx 80 \
  --alias private-nginx.demo.zt

--alias is the hostname Kasm sessions will dial; the Ziti tunnel resolves it, no DNS entry needed.

Step 6. Generate a Kasm admin identity

Kasm authenticates to the OpenZiti controller using an admin identity. Create and auto-enroll one:

kziti identity create kasm_api --admin --auto-enroll --output-dir .

This writes ./kasm_api.json — the identity file you will paste into Kasm in the next step.

Step 7. Configure OpenZiti egress in Kasm

1. Go to Infrastructure → Egress.
2. Create an egress provider with type OpenZiti.

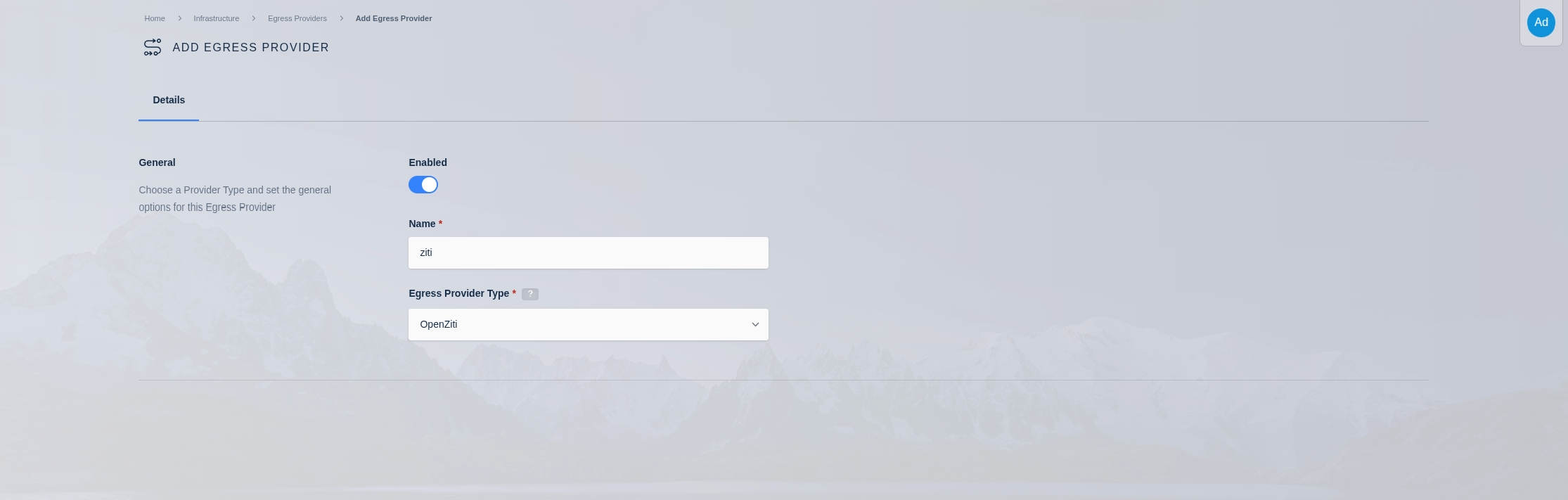

OpenZiti Creation

3. Open the provider and go to OpenZiti Configuration.
4. Open ./kasm_api.json and paste the full JSON as the OpenZiti admin identity.

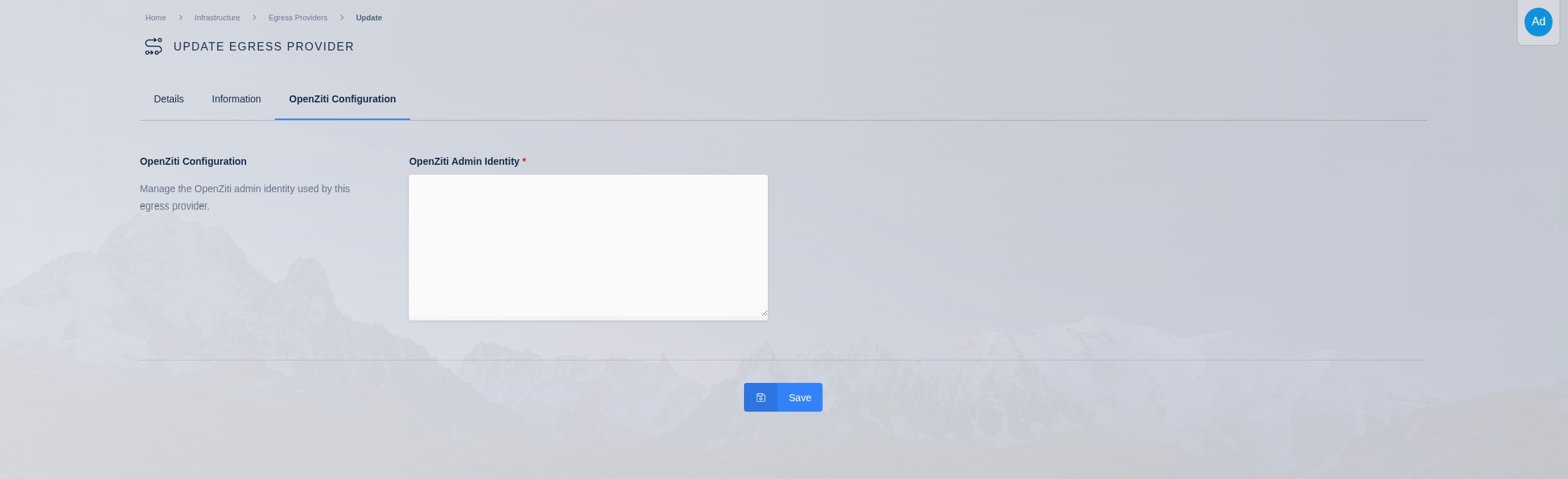

OpenZiti Credential

Example admin identity JSON shape:

{
  "ztAPI": "https://ziti.example.com:1280/edge/client/v1",
  "id": {
    "cert": "pem:-----BEGIN CERTIFICATE-----...",
    "key": "pem:-----BEGIN PRIVATE KEY-----...",
    "ca": "pem:-----BEGIN CERTIFICATE-----..."
  }
}

5. Map the provider to target users or workspaces.

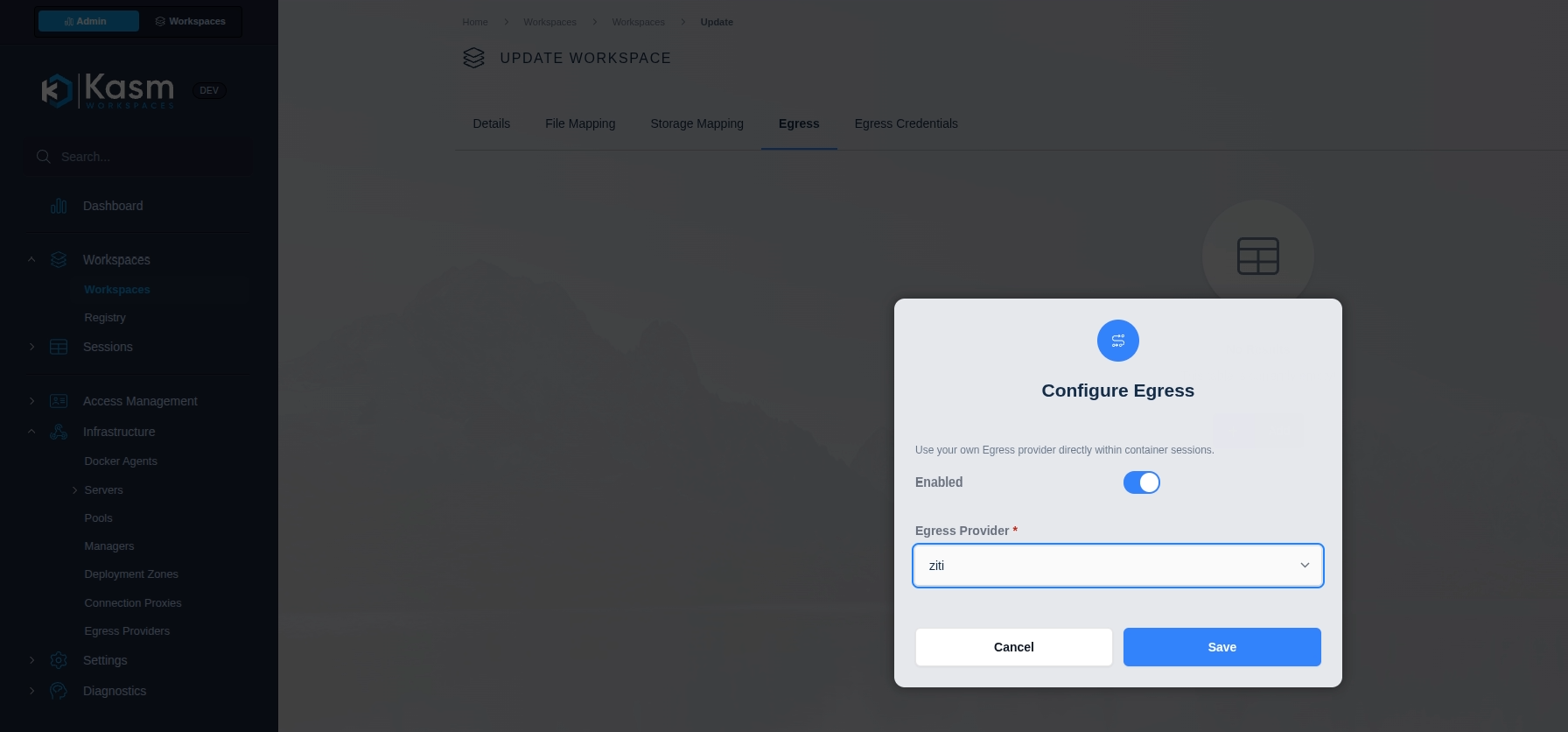

OpenZiti Mapping

Step 8. Grant the Kasm-managed identity access

After mapping and reconciliation, Kasm creates identities named like:

• kasm-user-<username>-<user-id-prefix>-<provider-id-prefix>
• kasm-workspace-<workspace>-<image-id-prefix>-<provider-id-prefix>

You can find the native OpenZiti UI located at https://<your-linux-vm-dns>:1280/zac.

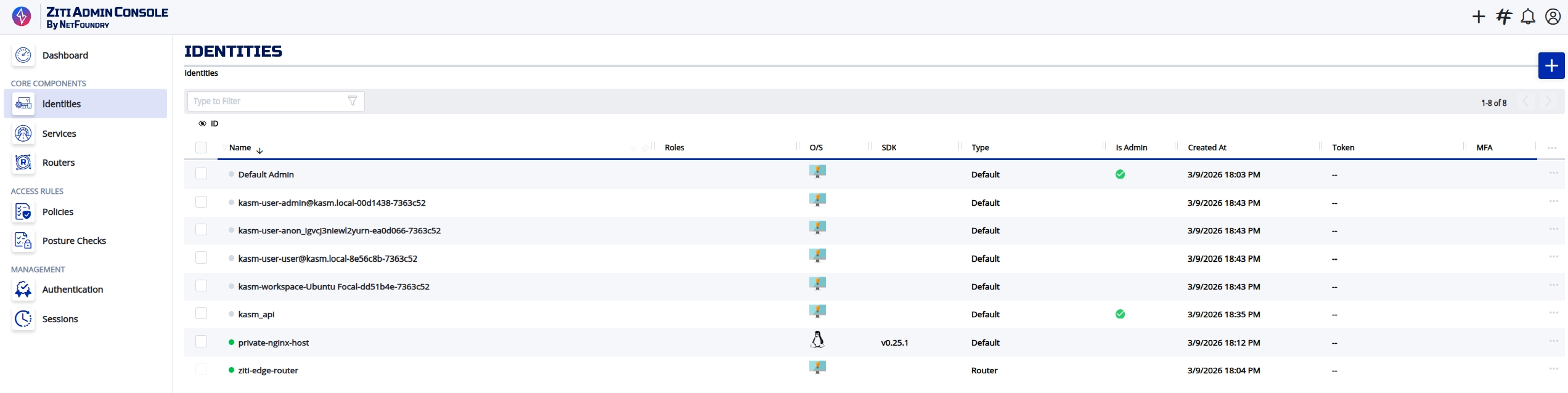

OpenZiti Created Identities

List the Kasm-managed identities and pick the one to grant:

kziti identity list --type workspace

Grant it access to every service in the demo network:

kziti access grant <kasm-workspace-identity-name> net-demo

To scope more narrowly, target a service set (svcset-<name>) or individual service (svc-<id>) instead. See Grant access.

Step 9. Validate from Kasm session

Open a browser inside a mapped Kasm workspace session and navigate to http://private-nginx.demo.zt. You should see the default nginx welcome page.

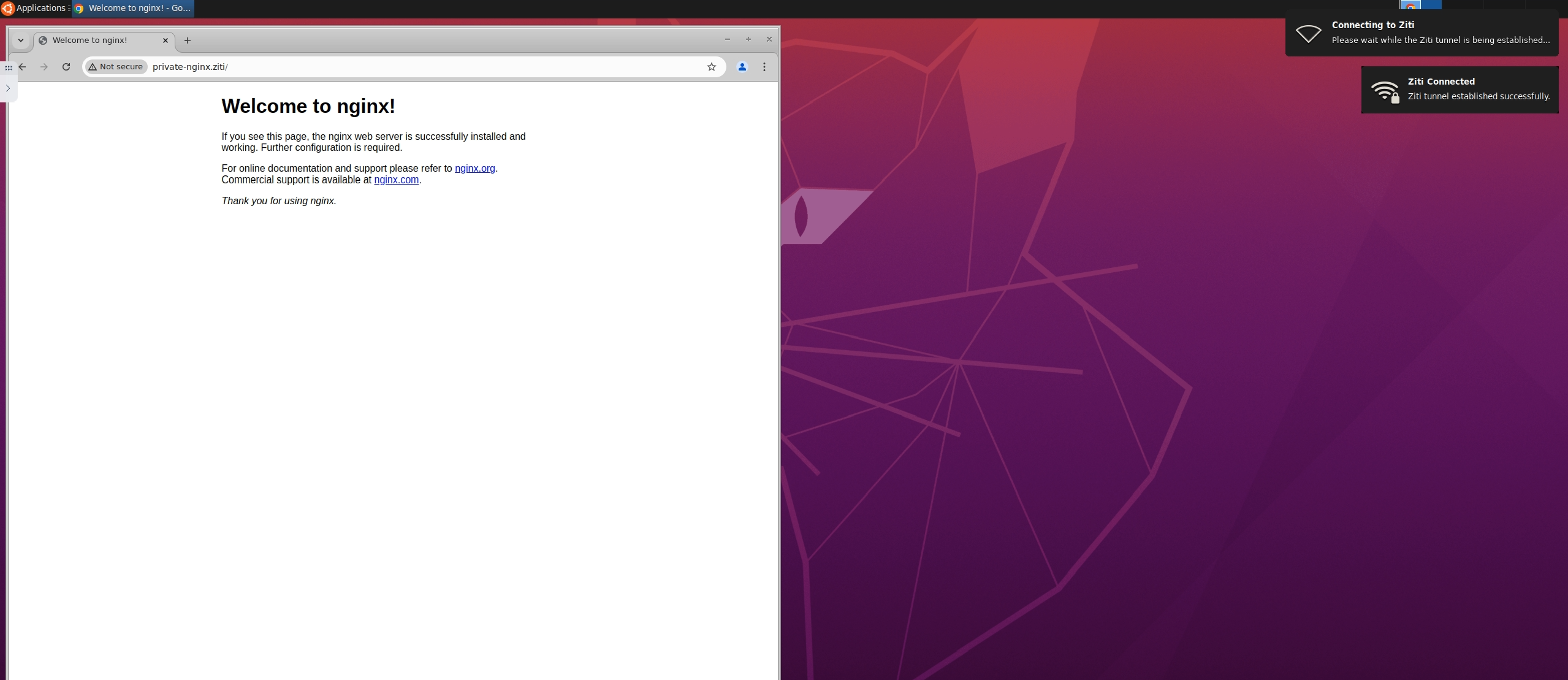

OpenZiti Workspace

If this fails, continue with the troubleshooting flow.

Troubleshooting basics

1. Confirm the OpenZiti stack is healthy and the private router is online:

kziti status
kziti router list

2. Confirm the service exists and the grant resolved:

kziti service list --network demo
kziti access list <kasm-workspace-identity-name>

3. Check Kasm sidecar logs during session startup:

• /var/log/kasm-sidecar/network_sidecar.log
• /var/run/kasm-sidecar/$container_namespace/ziti.log

4. For deeper troubleshooting see the OpenZiti troubleshooting guide.
